PCB High Precision Cutting Machine / PCB Assembly with Microgroove

Brand Name : Chuangwei Pcb cutting machine

Model Number : CWV-1A pcb cutting machine

Certification : CE and GMC

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T,paypal, cash

Supply Ability : 1000 sets / year

Delivery Time : within 3 days after receive the payment

Packaging Details : plywooden case

Cutting length : 460 / 600 / 1200 mm

MOQ : 1 set

establish year : 1999

system : automatic type

material : high speed steel

shipping way : EXW / FOB

Contact Now

PCB High Precision Cutting Machine / PCB Assembly with Microgroove

Available PCB length:

CWV-1A460 : cutting length up to 460mm

CWV-1A600 : cutting length up to 600mm

CWV-1A1200 : cutting length up to 1200 mm

PCB Separator machine advantages :

1. Easy maintanance and operation
2. Low bending stress,no vibration
3. specially for resin substrate PCB with pre-scored V groove

4. safety use

PCB Separators Specifications :

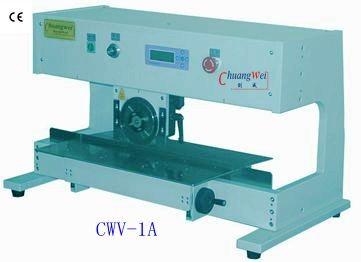

Model CWV-1A
Max. PCB cutting length 460 or 600 mm ( on request custom made )
PCB cutting thickness 0.6-3.5 mm
PCB cutting speed 100 , 200 , 300 , 500 mm / sec
Blades type upper circular blade moving automatically
Blade motive power operating mode motor-driven
Power supply 110 / 220v
PCB cutting machine size 770 * 510 * 450 mm
PCB cutting machine weight 55 kg



V-CUT PCB separator features :


1. Separate pre-scored PCB assembly without stress on either PCB or component
2. One touch programming of cut length with digital display
3. Separating speed is adjusted by a rotary knob
4. Handle Intermittent scoring or cut-outs
5, Board with projected component can be cut precisely
6. Large stainless steel platform on both side of cutting blade prevents board wobble and table height and angle are adjustable
7. Optional PCB conveyor belt to remove finished board
8. Clearance between circular and linear blades are adjustable to fit different groove depth and compensates for blade wear out


Video :

http://www.youtube.com/watch?v=kgQcXtUbpbw [ CWV-1A460 ]

http://www.youtube.com/watch?v=PMTN8RPocfA&feature=youtu.be [ CWV-1A600 ]


Company Information :


From 2004 we started to development,manufacture,sale,service for PCB cutting machine, until now,we have produced different kind PCB cutting machine type for manual,motor-driven,pneumatic-driven,mold punching,milling cutter router.
You can depend on your company's condition and choose the most suitable one.
Also We can manufacture PCB cutting machine base your actual requires. (any shape,length,thickness of PCB,aluminium PCB,LED strip,solar energy PCB,FR4 and soft material FPC etc.)
Any interest please contact us freely

Chuangwei PCB cutting machine
